Factory Direct Solar Panel 200W 18V Flexible Emergency Charging Home/Camping Outdoor Photovoltaic Battery Panel
Logistics and Fee Information
The price displayed on this page excludes shipping and taxes.The specific costs will be calculated based on your order quantity and selected shipping method（AirFreight 5-10 days/SeaFreight 30-35 days，but30-50%off）.
Features:
--Flexible solar panels
--High power, suitable for outdoor and RV use.
--EVA+PET front panel, flexible, lightweight, durable and lightweight

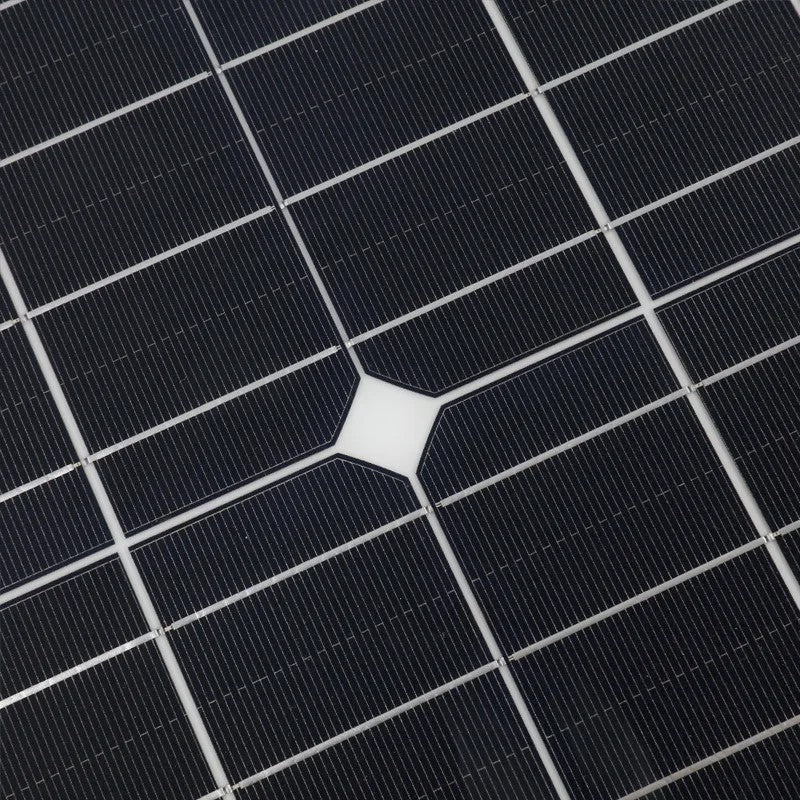

——Monocrystalline silicon solar cells have an efficiency of up to 22%.
--4 eyelets for easier installation.
--IP65Waterproof, suitable for outdoor use in light rain weather.
-- Well packed with sponge and corner pad.
--Can be used for electric scooters, cars, RVs, yachts, ships, airplanes, satellites, space stations, outdoor farming, plantations, tourism, solar street lights, scientific research projects, etc.

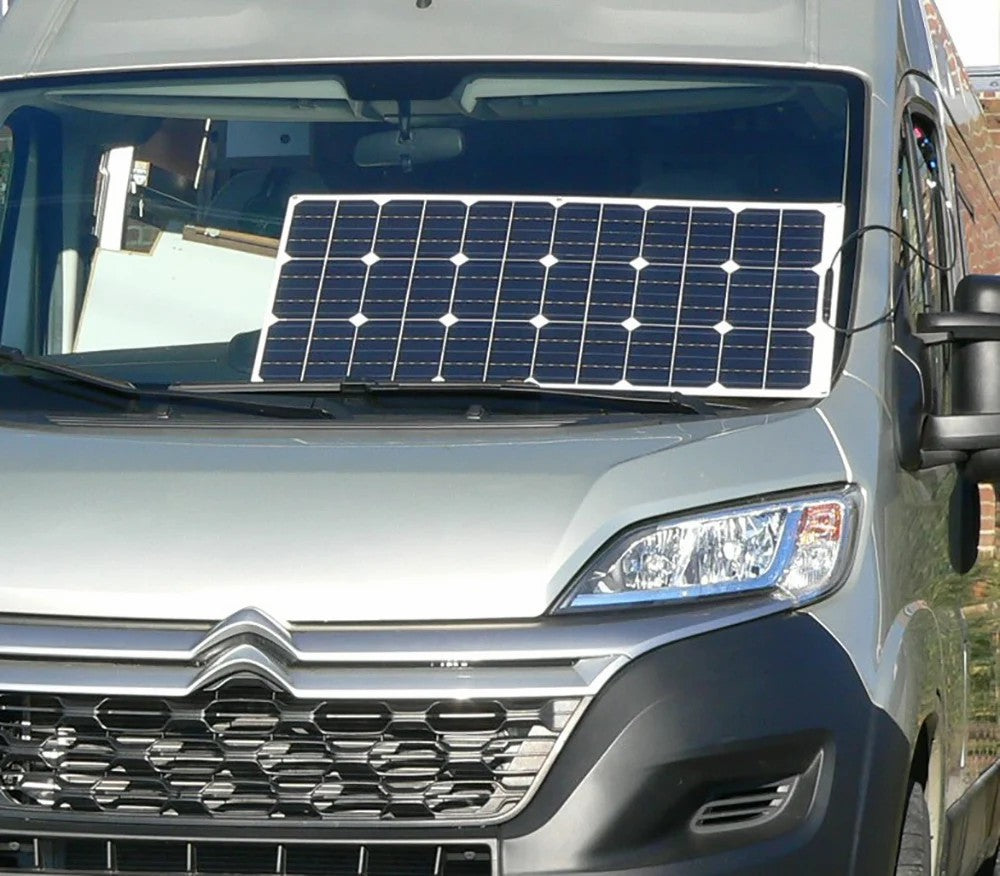

Flexible solar panels are increasingly being used in various settings, including homes, RVs, ships, trucks, and trailers.Most homeowners now use solar panels to reduce their electricity bills.Others enjoy the convenience of powering their appliances while out and about.

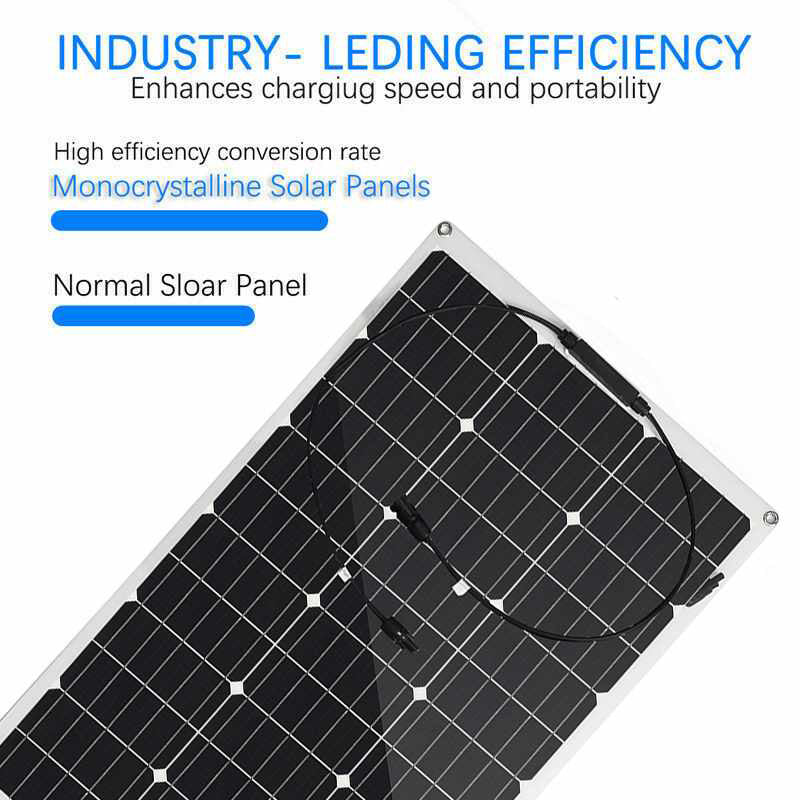

●Powerful panel with above-average efficiency

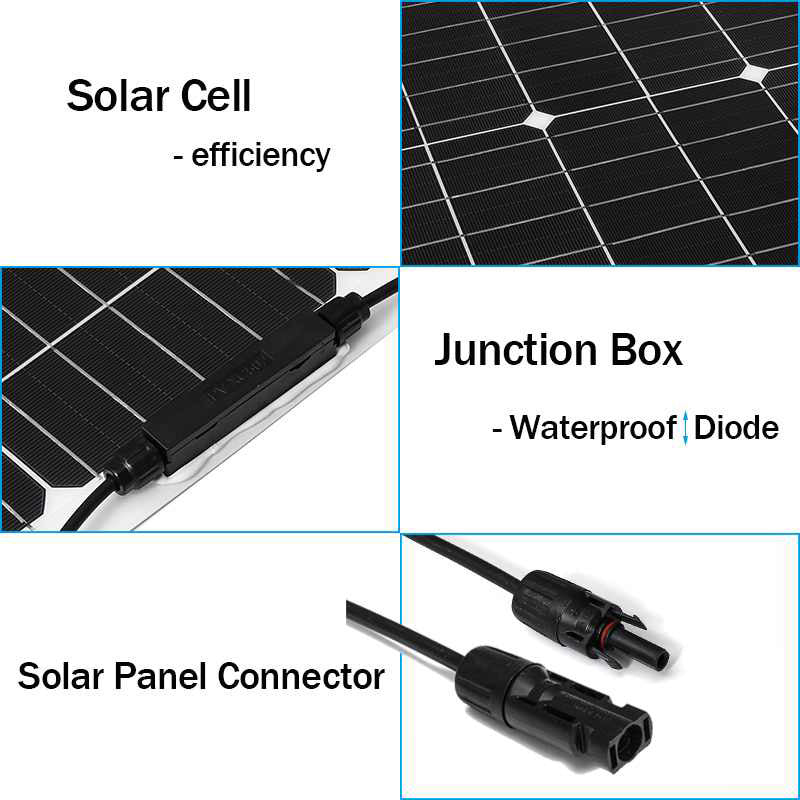

This solar panel has an efficiency of approximately 23%, higher than many standard devices on the market.Additionally, it comes with an integrated blocking diode that helps prevent reverse current consumption, especially during nighttime.This ensures optimal efficiency levels.

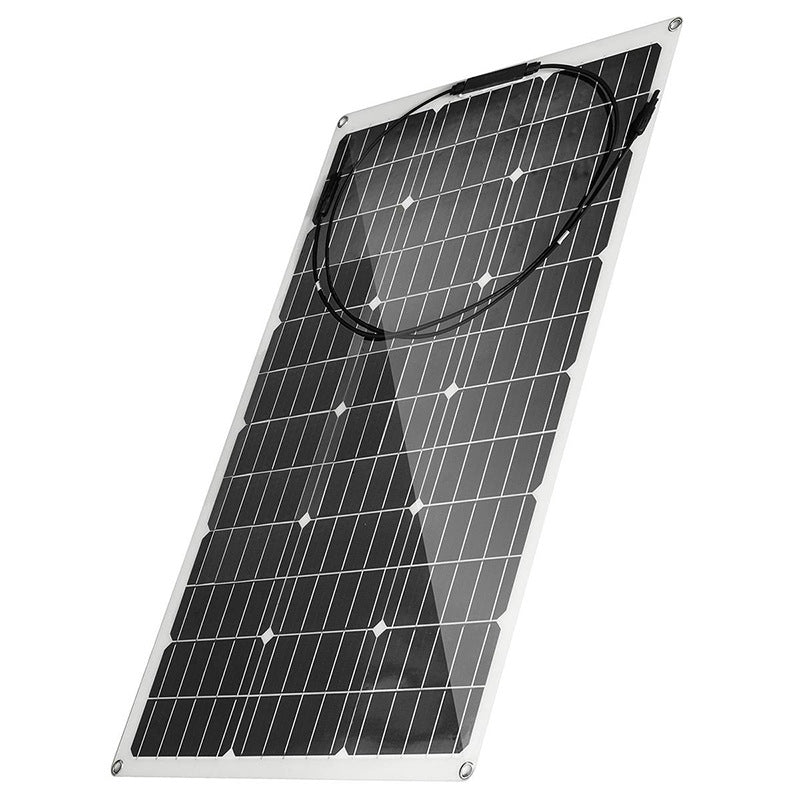

●Frameless panel, easy to operate
This 100w flexible solar panel has a thickness of only 0.1inch mm and a weight of only 4.45 lbs, with a unique frameless design.You can use glue, tape, grommets, or Velcro to secure it to your desired surface.This design ensures easy installation.Six metal reinforced mounting holes are used for securing screws, hanging and removing panels while facilitating transportation.

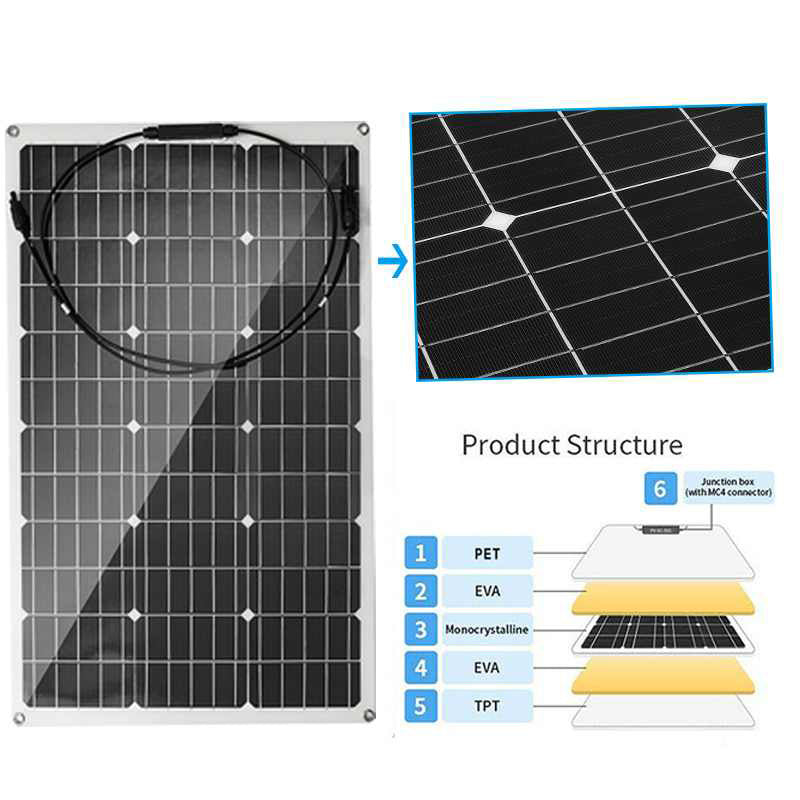

●Durable faceplate made of PET material
Speaking of structure, this panel uses a special PET film that is resistant to high temperatures, dirt-resistant, and easy to clean.Due to its Waterproof casing, this solar panel also has excellent durability.
●Flexible panel that can be installed anywhere
As you would expect from a flexible solar panel, this 100-watt flexible solar panel can bend up to 20 degrees, allowing it to be installed on curved surfaces.In fact, its body is very sturdy and flexible, allowing it to be used in tight spaces or crowded areas that are often inaccessible to traditional glass and aluminum solar panels.
Parameter
Power (pmax): 100W*2
Open circuit voltage (voc): 21V
Power Voltage (VMP): 18V
Short circuit current (isc): 4.5A*2
Power current (impp): 4A*2

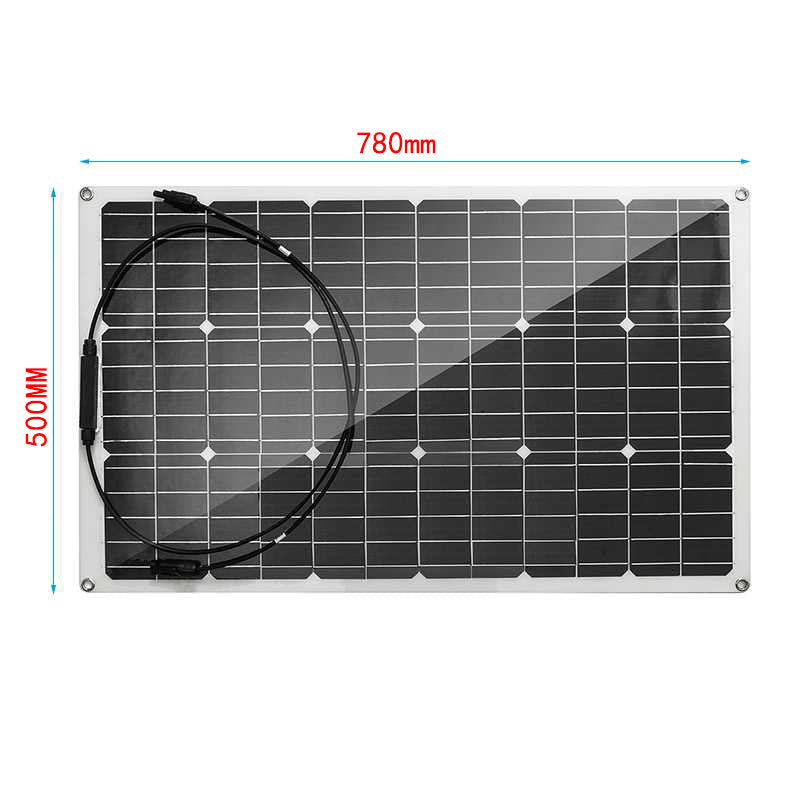

Size: 780*500*2.5mm (solar panel)
Weight: 1.5kg (single piece)

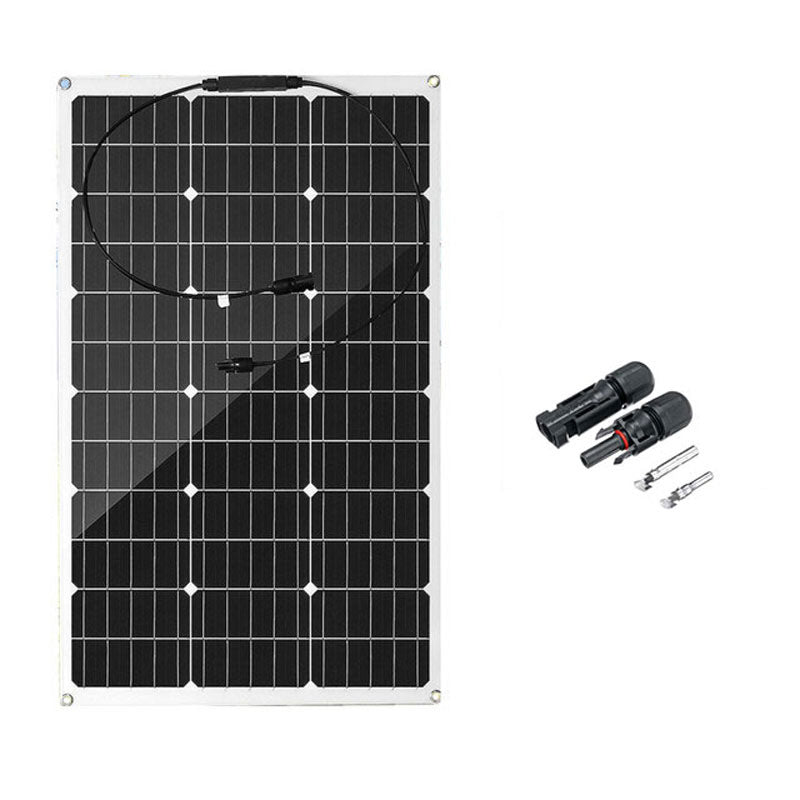

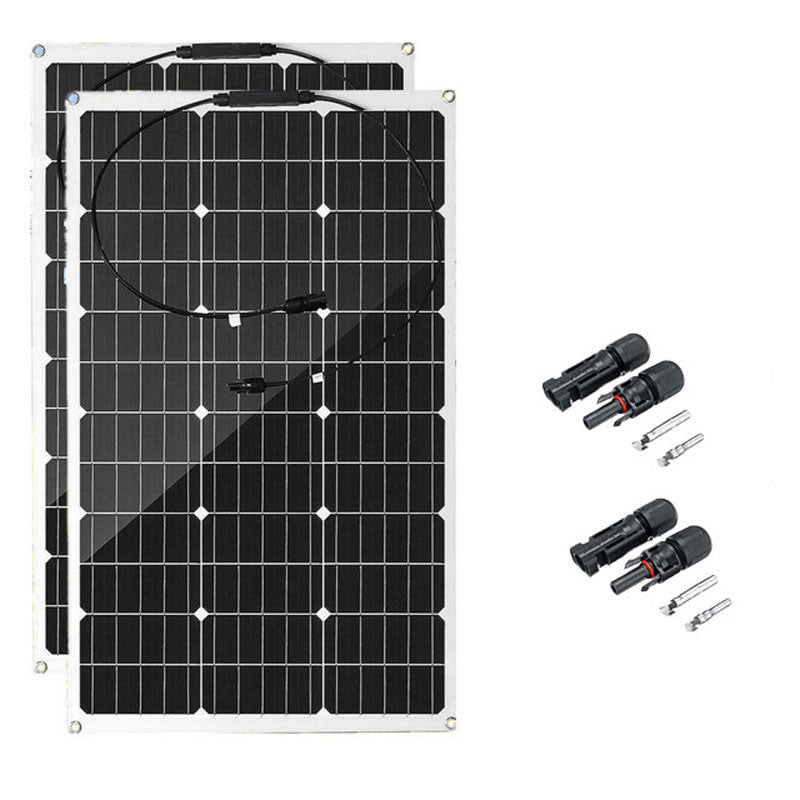

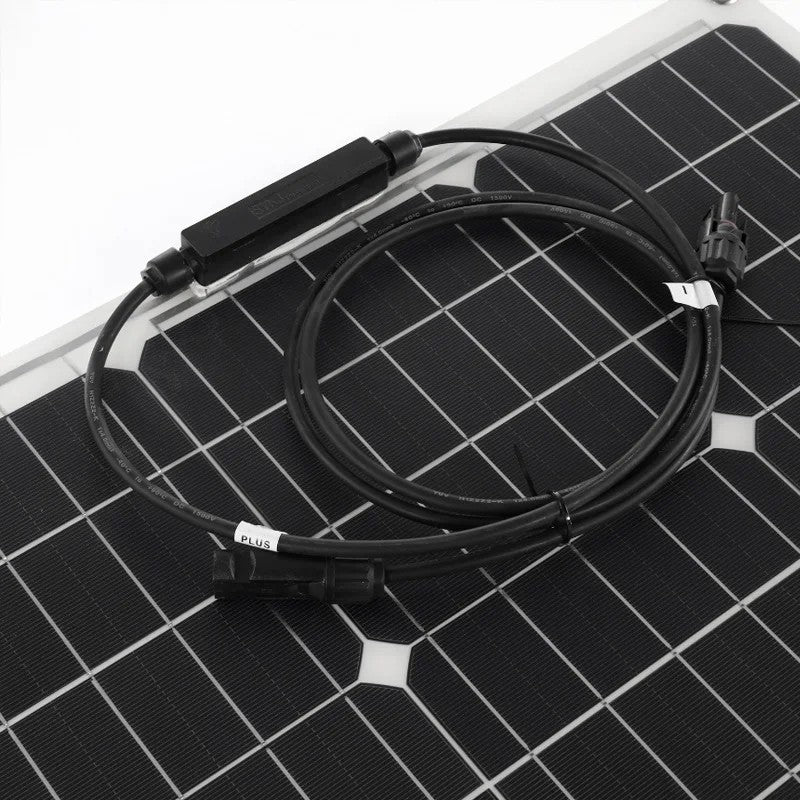

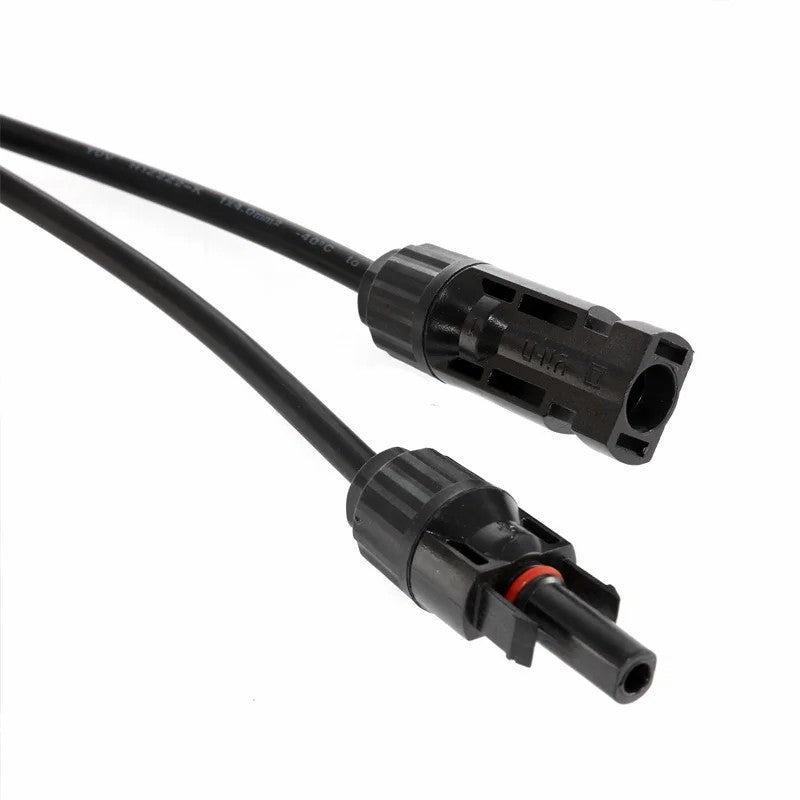

Output: MC4
Standard Test Conditions
AM=1.5
Irradiance = 1000W㎡
Temperature = 25℃
Temperature coefficient Voltage: (0.065±0.015)%/℃
Temperature coefficient current: -(160±10)mA/℃
Temperature coefficient power: -(0.5±0.05)%℃
System voltage: 1000V
Operating Temperature Range: -40°C to +85°C (-40°F to 185°F)
Wind resistance: 50psf (2400 pascals)
Snow resistance: 113 psf (5400 pascals)
Hail impact: 25mm ( 1inch ) at 23 m/s (52mph)

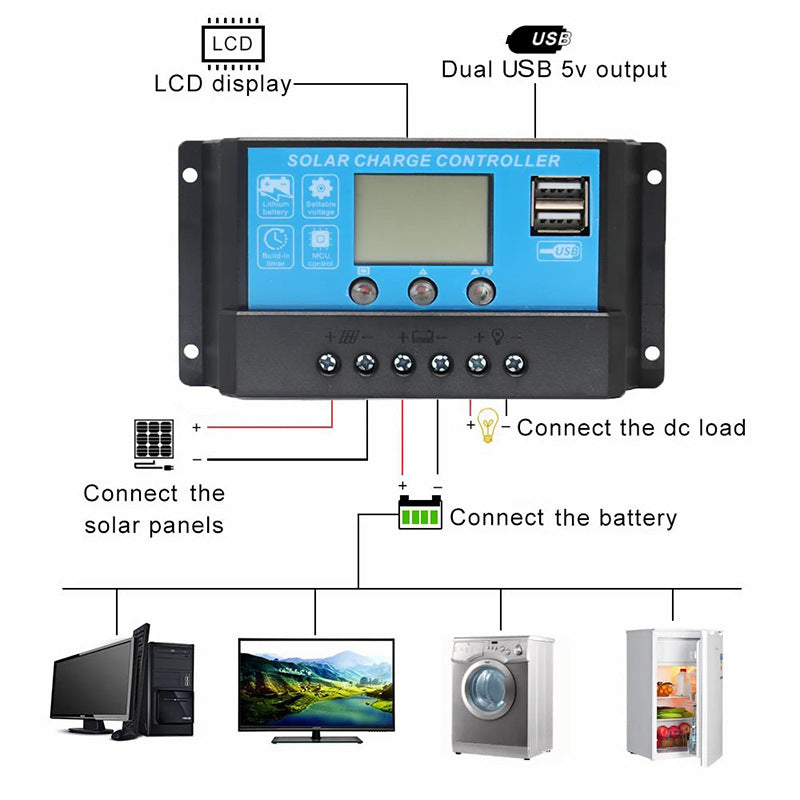

Controller (Note: If no specification is made when placing an order, the A controller will be shipped as default 10A) The controller can work without connecting to a battery
Model: PWM
System voltage: 12V/24V automatic recognition
Rated charging current: 10A, 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A
Rated discharge current
Photovoltaic voltage 12V system<23V/24V system<46V
Product Information

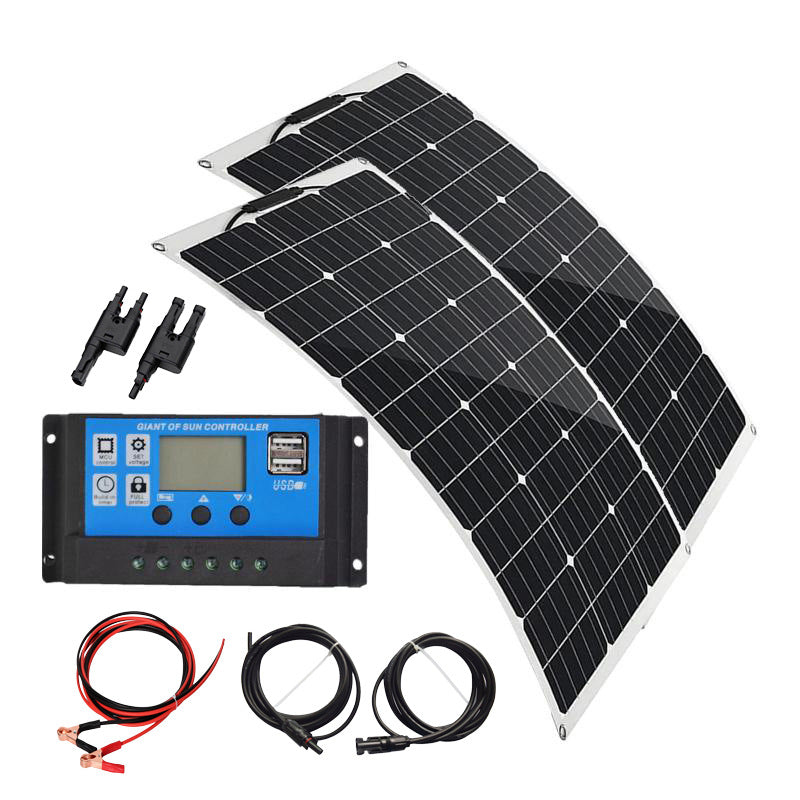

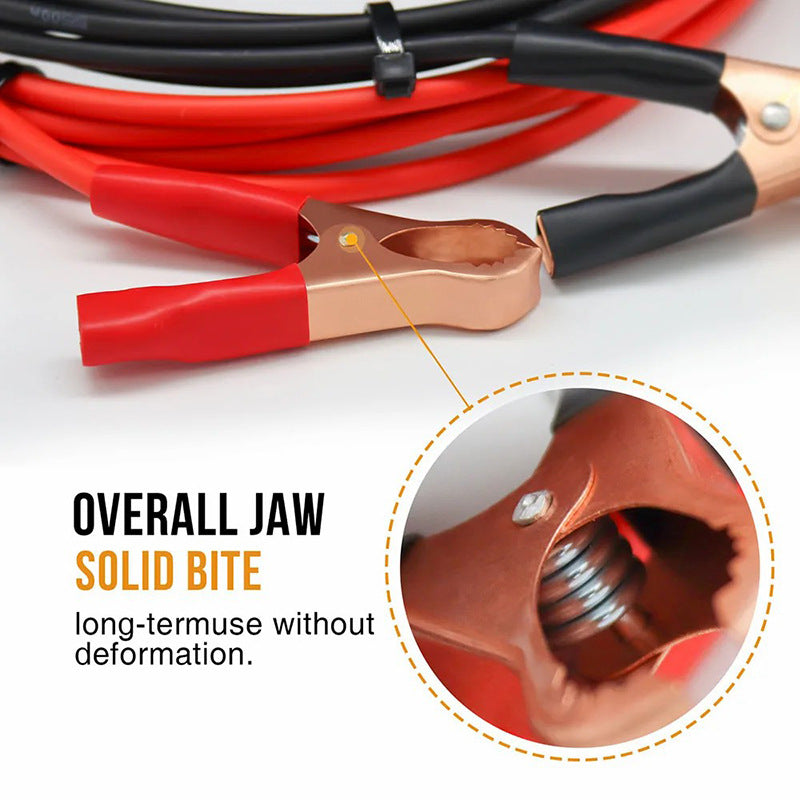

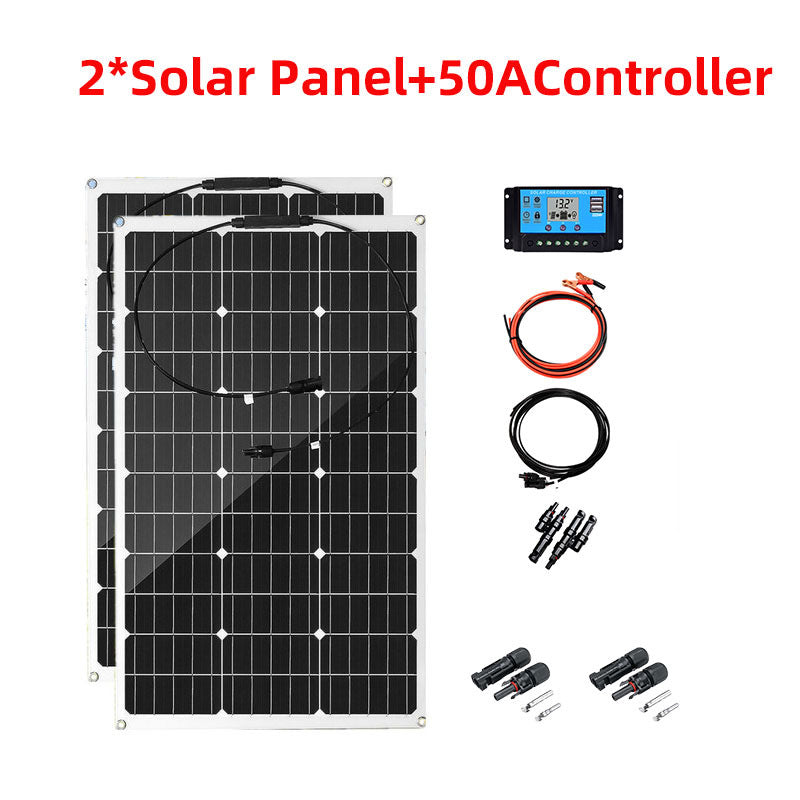

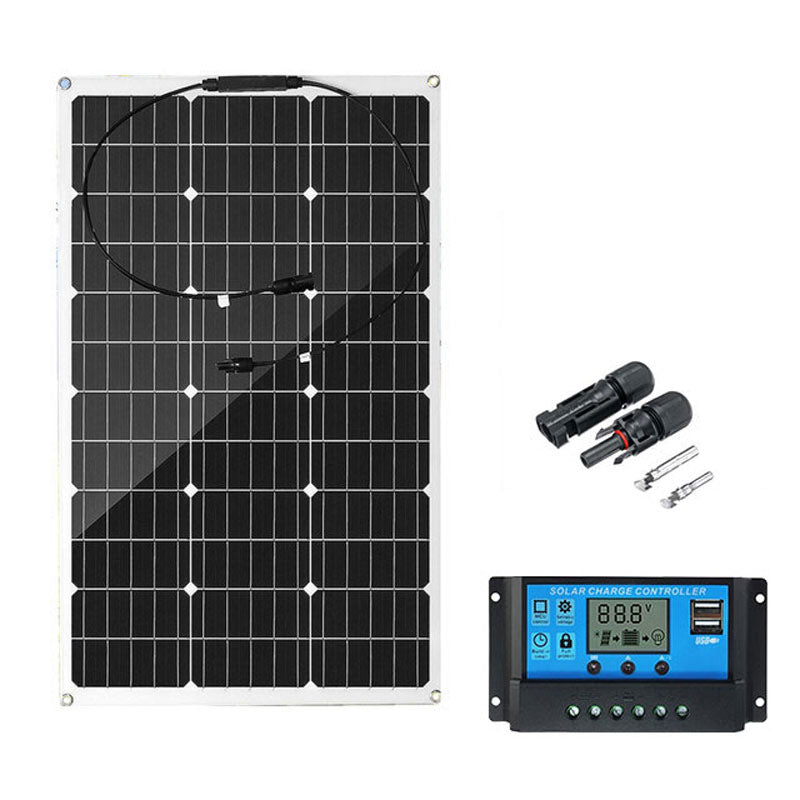

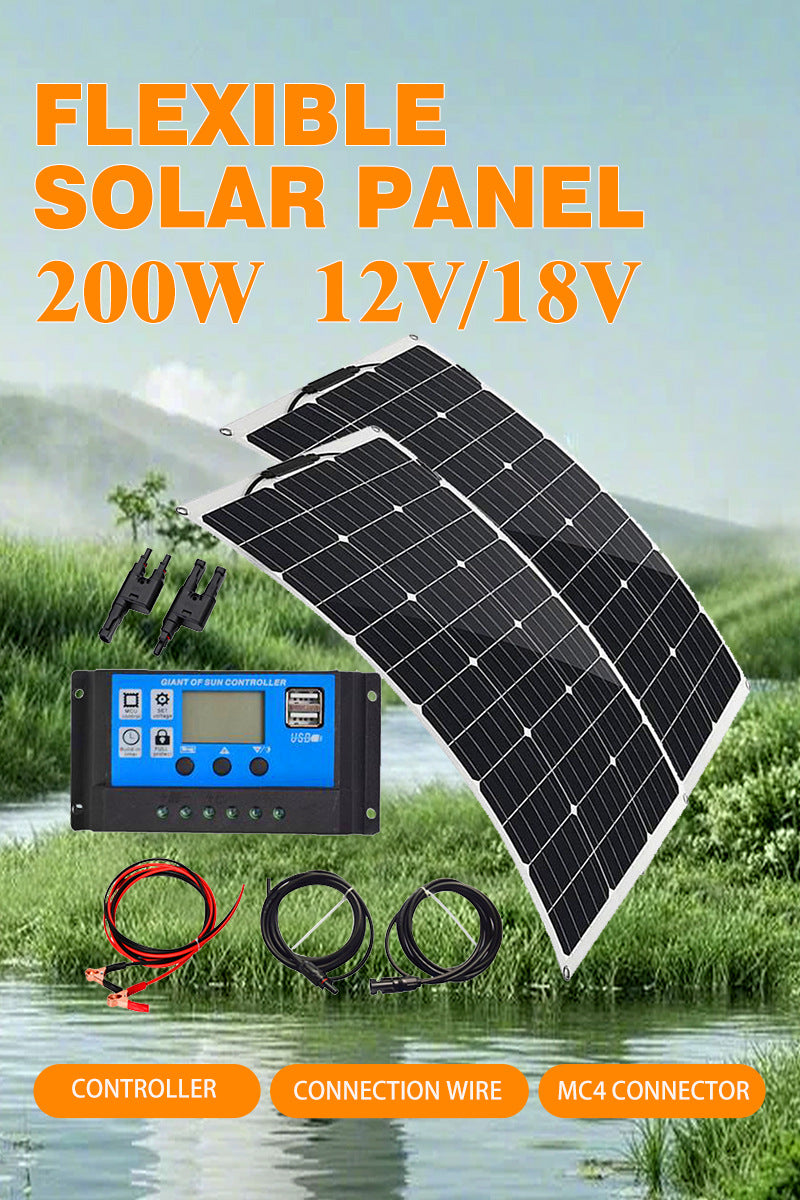

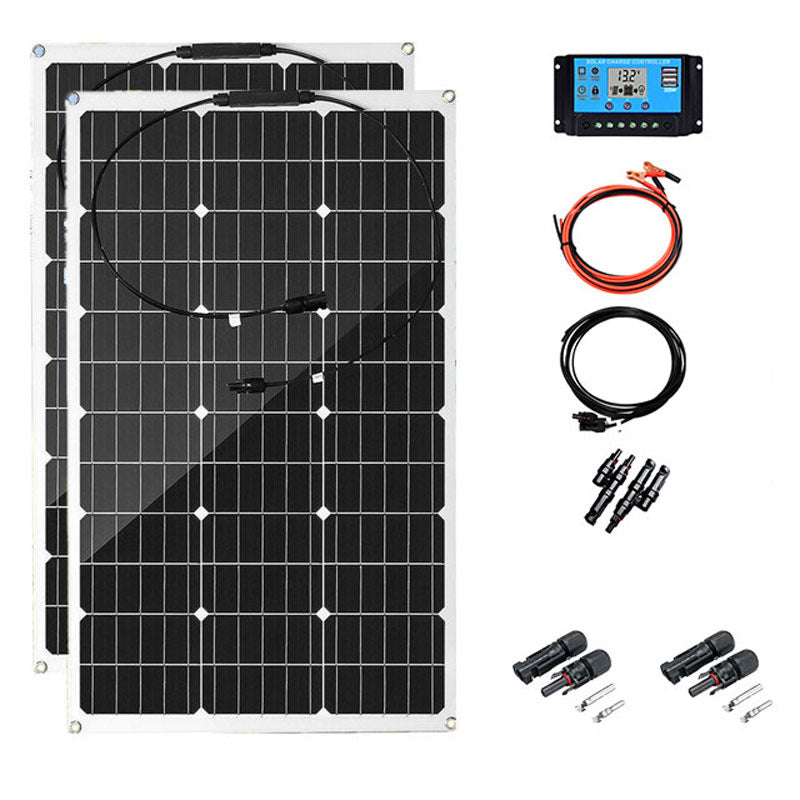

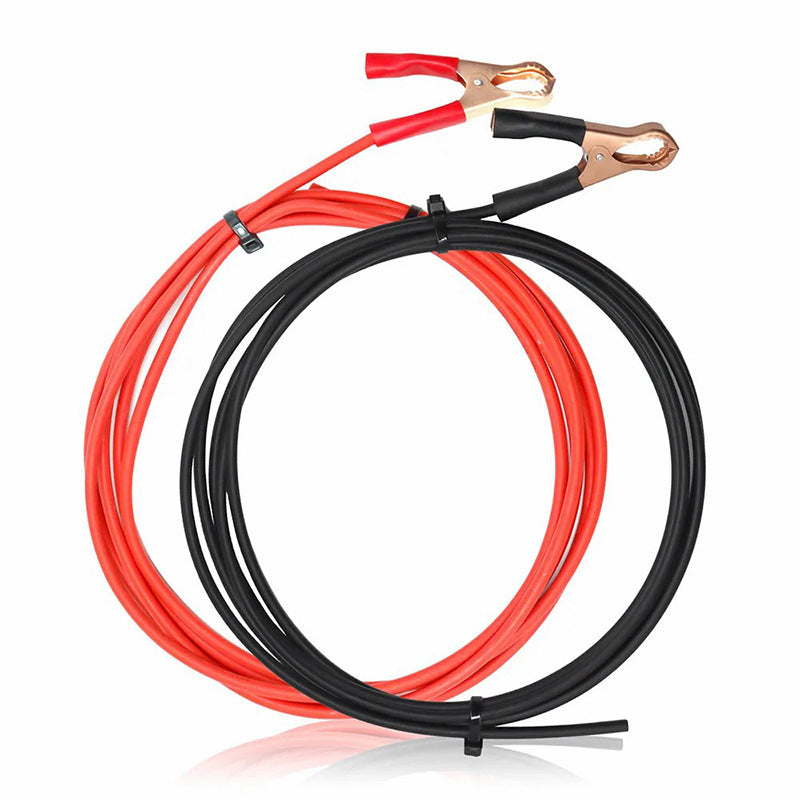

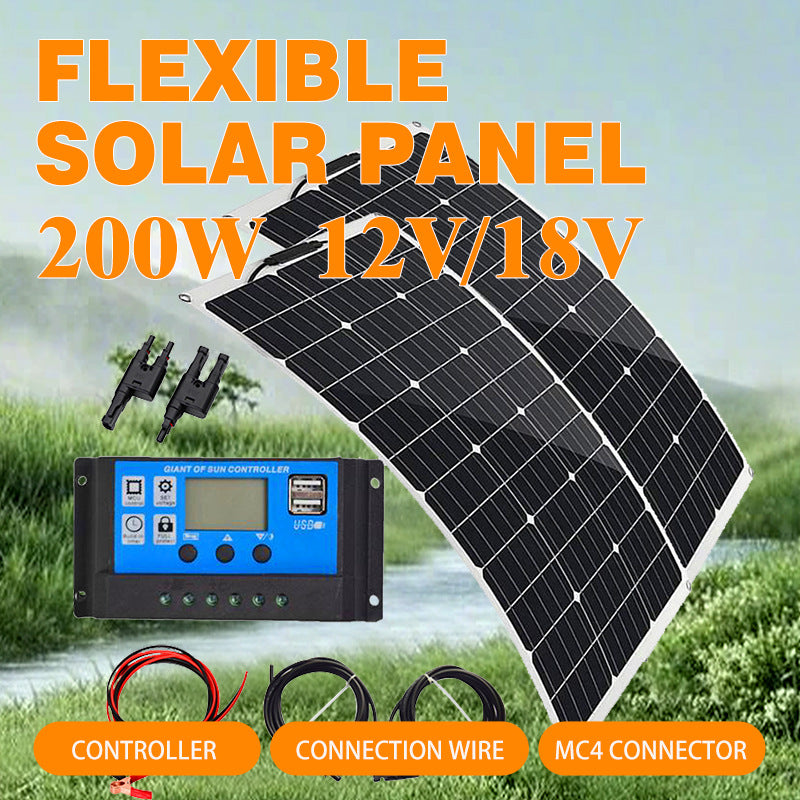

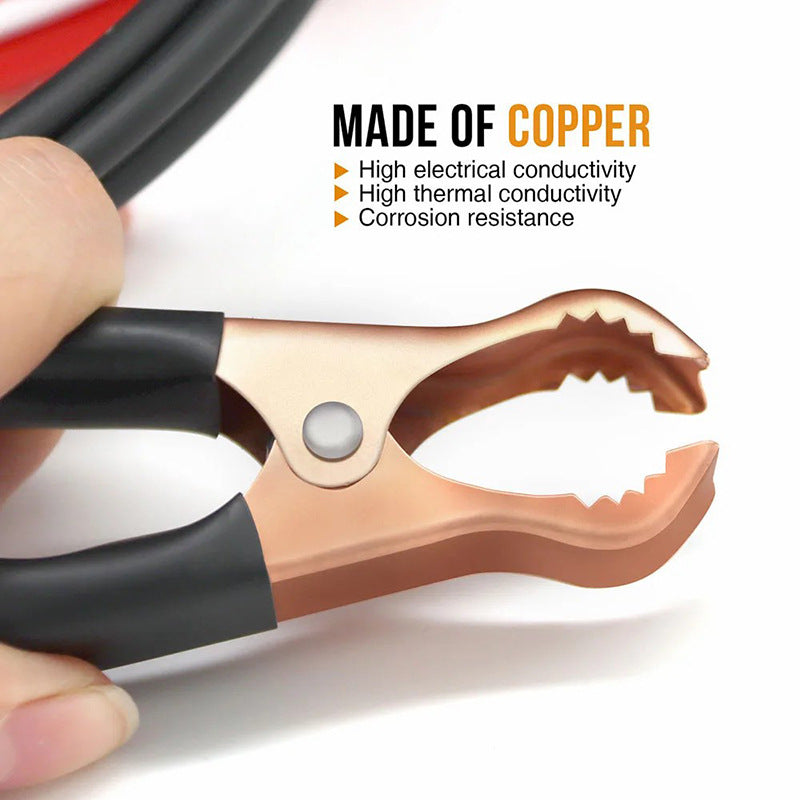

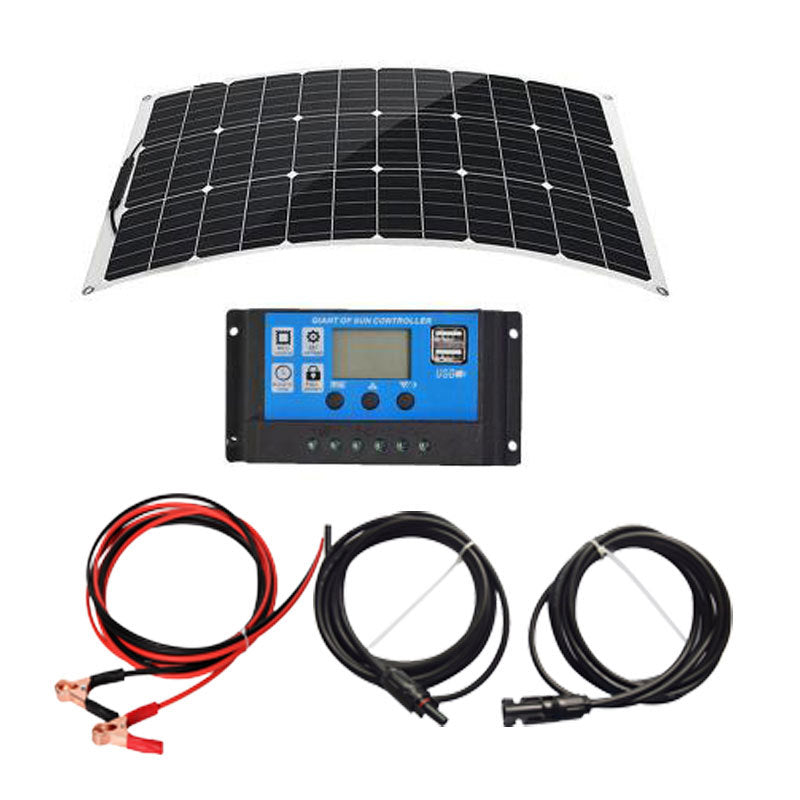

Packing list: Details as shown Solar panel*1/2 MC4 interface*1/2 Controller *1 Battery Clamp 2m Extension Cable *1 MC4 Interface Extension Cable *1 MC4 Three-Way Interface *1 Carabiner*4) Optional
Packing size: 790*530*40mm
Packaging weight: 1.6kg single piece 3.8kg (set)
The product does not store electricity and can be used as general merchandise.
Flexible solar panels are increasingly being used in various settings, including homes, RVs, ships, trucks, and trailers.Most homeowners now use solar panels to reduce their electricity bills.Others enjoy the convenience of powering their appliances while out and about.
●Powerful panel with above-average efficiency
This solar panel has an efficiency of approximately 22%, higher than many standard devices on the market. Additionally, it comes with an integrated blocking diode that helps prevent reverse current consumption, especially during nighttime. This ensures optimal efficiency levels.
●Frameless panel, easy to operate
This 100w flexible solar panel has a thickness of only 0.1inch mm and a weight of only 4.45 lbs, with a unique frameless design.You can use glue, tape, grommets, or Velcro to secure it to your desired surface.This design ensures easy installation.Six metal reinforced mounting holes are used for securing screws, hanging and removing panels while facilitating transportation.
●Durable faceplate made of PET material
Speaking of structure, this panel uses a special PET film that is resistant to high temperatures, dirt-resistant, and easy to clean.Due to its Waterproof casing, this solar panel also has excellent durability.
●Flexible panel that can be installed anywhere
As you would expect from a flexible solar panel, this 100-watt flexible solar panel can bend up to 20 degrees, allowing it to be installed on curved surfaces.In fact, its body is very sturdy and flexible, allowing it to be used in tight spaces or crowded areas that are often inaccessible to traditional glass and aluminum solar panels.
